Air FilterStandard Kawasaki Air Cleaner
Anti Scalp Wheels3 Standard
ArmrestsOptional
Bagger Capacity4.9 bushels
Blade Tip Speed18,500 ft/min / 5,638 m/min
Box Dimensions82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic
ClutchElectromagnetic
Comfort PlatformStandard Suspension
Cooling SystemAir Cooled
Crankshaft1" (25 mm) w/Steel Protector
Cup HolderStandard
Cutter SystemSteel Cutting Blade
Deck Design10-Gauge steel IrongForged®
Deck Material10 Gauge Steel
Deck Size60 in / 152 cm
Discharge ChuteSide
Drive SystemHydrostatic
Drive Tires20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
Drive TypeRear-Wheel Drive
Engine23 hp Kawasaki FR691V 726cc
Engine BrandKawasaki
Engine Displacement (cc)726 cc
Engine Horsepower23.0 hp
Engine Power (kW)17.2 kW
Foot Operated Height of CutStandard
Forward Ground/Transport SpeedUp to 7.0 mph / 11.2 kph
Forward Mowing SpeedUp to 7.0 mph / 11.2 kph
Frame3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity. - 5 gal. / 18.9 L / 20 Qt.
Fuel Type - Gasoline
Greasable Bearings - Yes
Height of Cut - 1.0 - 5.0 in. / 2.5 - 12.7 cm
Hitch Bracket - Standard
Hour Meter - Standard
Hydraulic Drive - Standard
Lighting - Optional
Number of Blades - 3

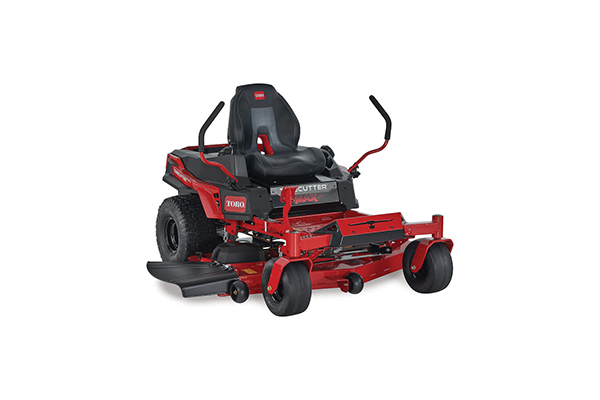

Product Type - TimeCutter Max
Product Use - Residential
Recommended Oil Type - 10W-30
Roll-Over Protection System (ROPS) - Optional
Seat - 19" Gaming Style
Spindle Bearings - Maintenance-free
Spindle Housing - Cast-Aluminum
Start Type - Electric
Steering Controls - Twin Lever
Steering DampenersS - Standard Dampers
Terrain Type - Flat with Obstacles
Tires - 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
Transmission - Dual Hydrostatic HG-ZT2800
Washout Port - Standard
Weight - 668 lbs / 303 kg
